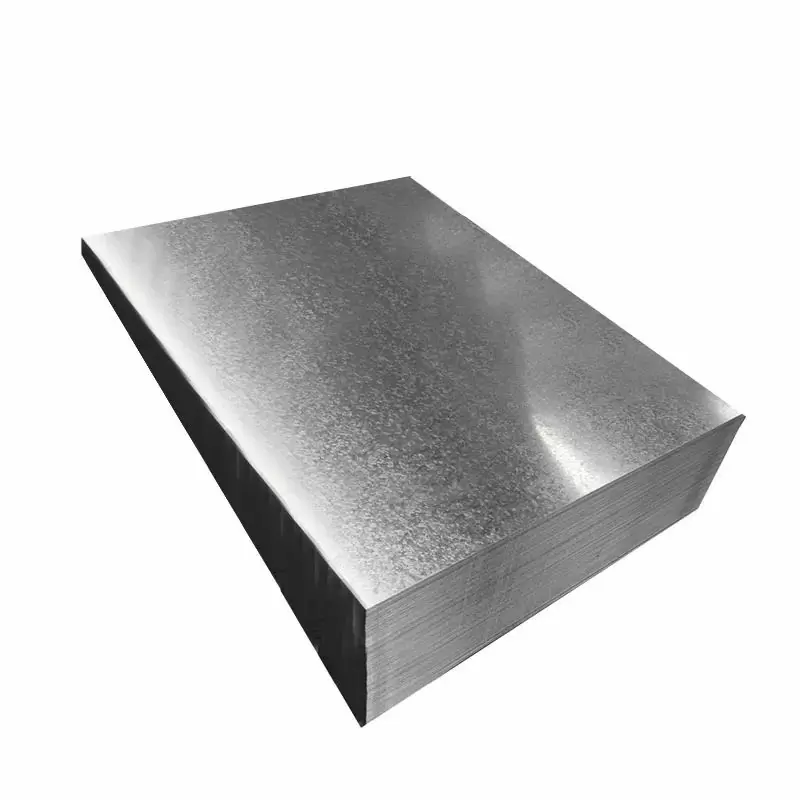

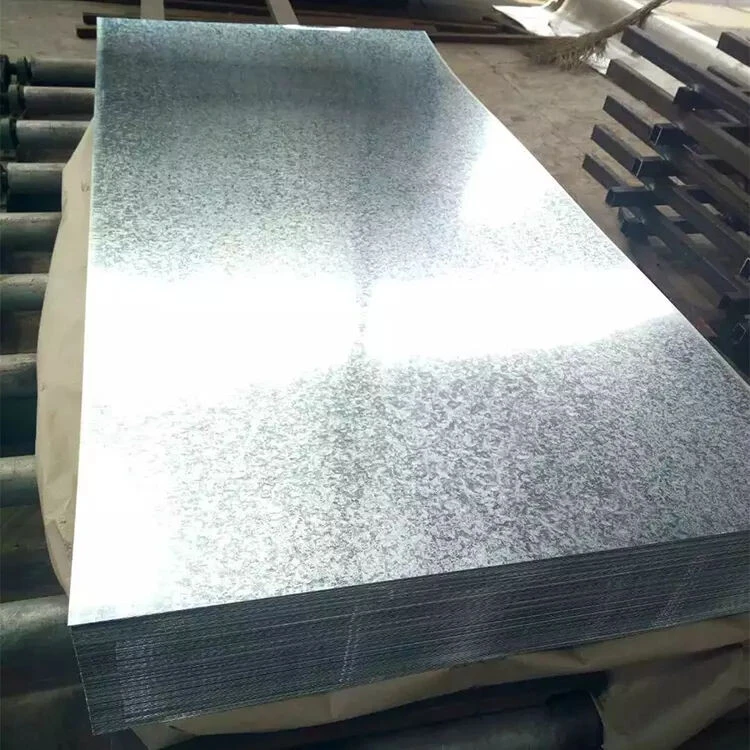

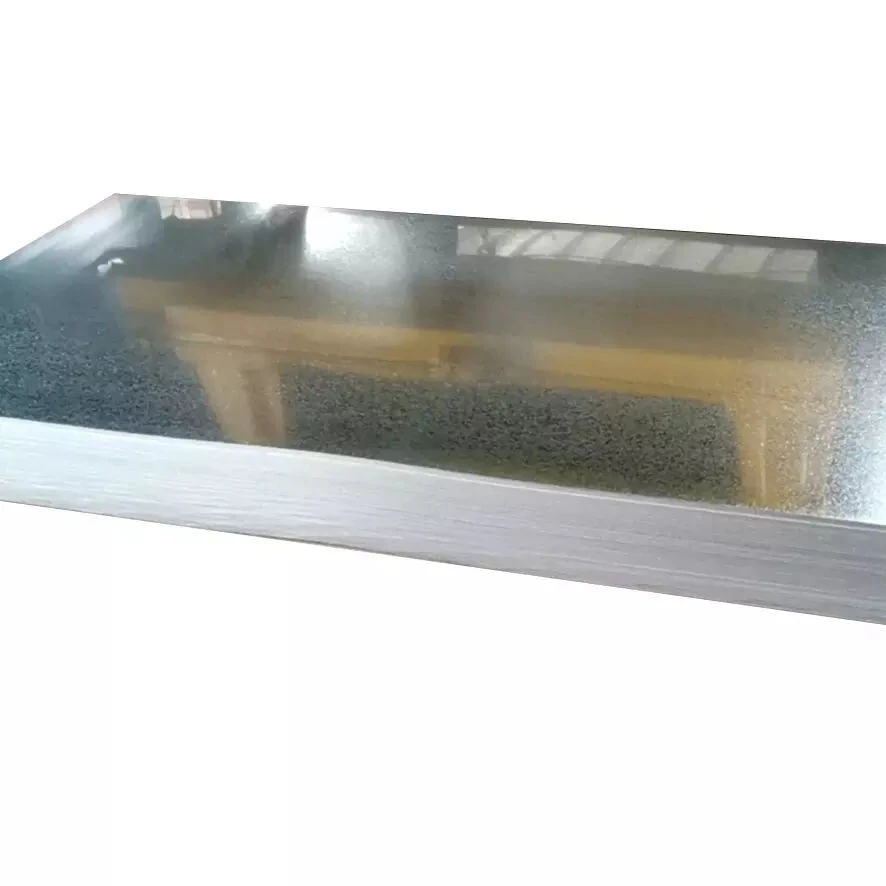

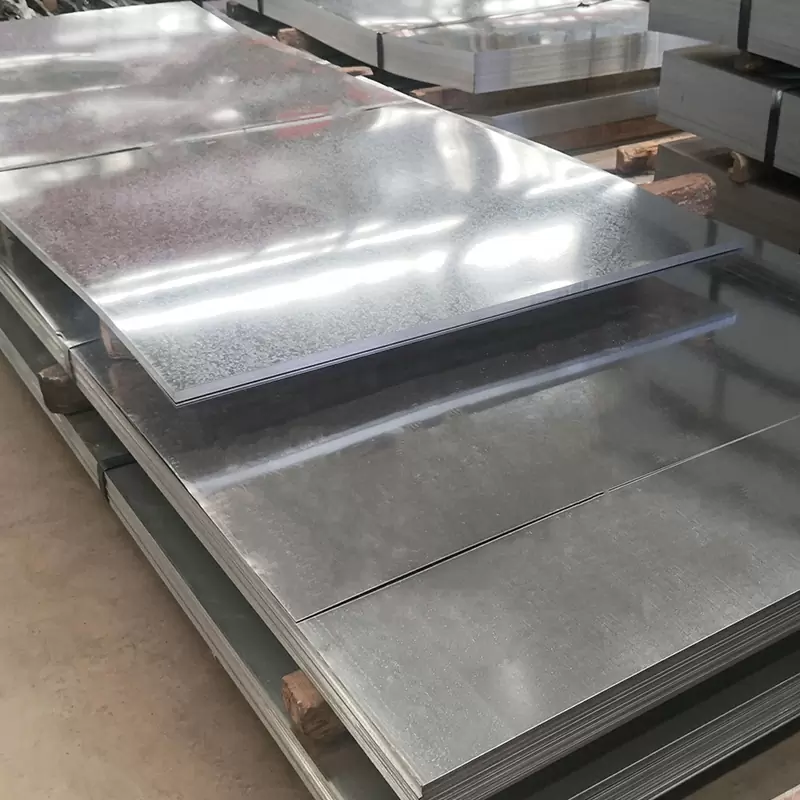

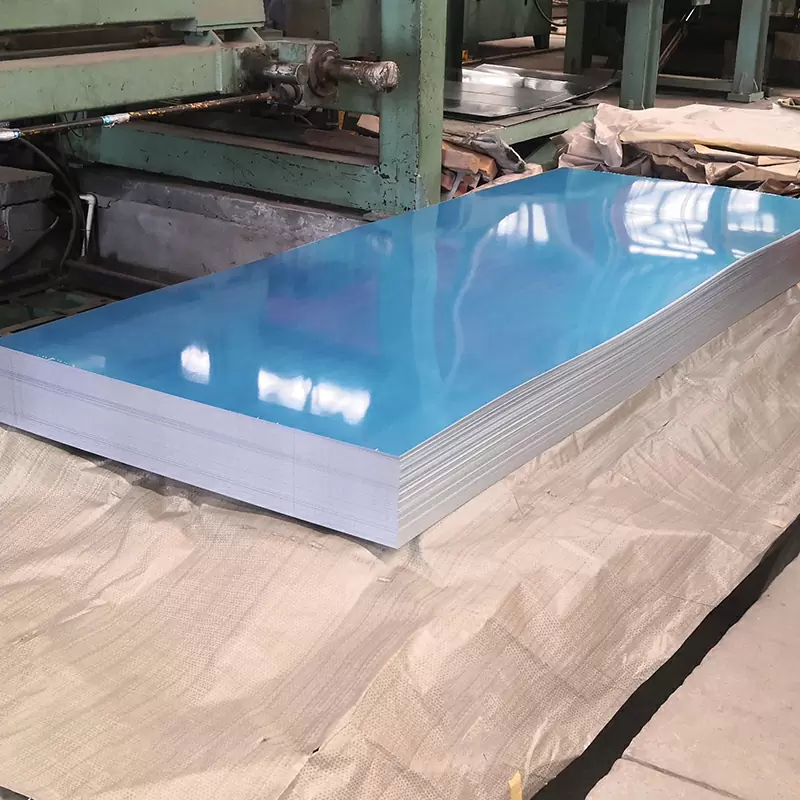

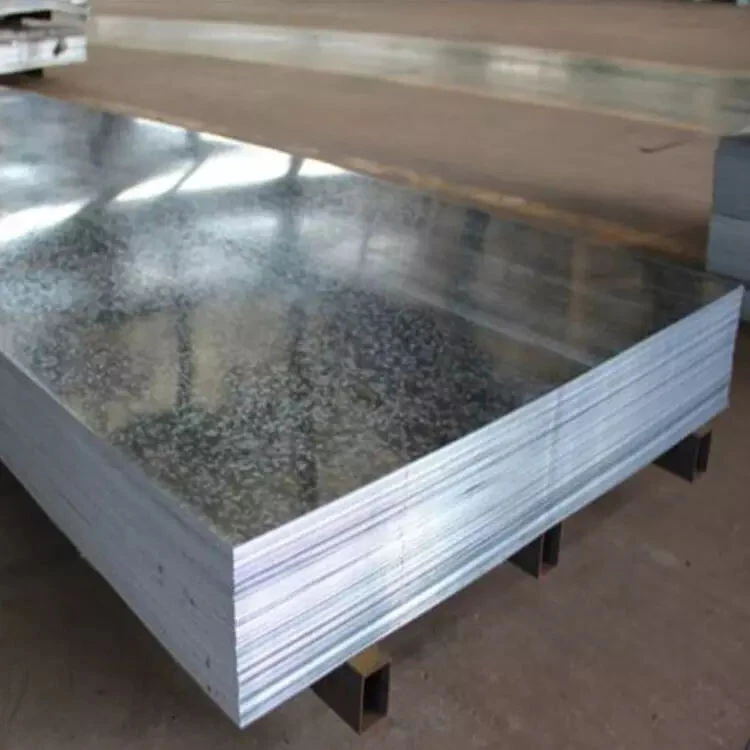

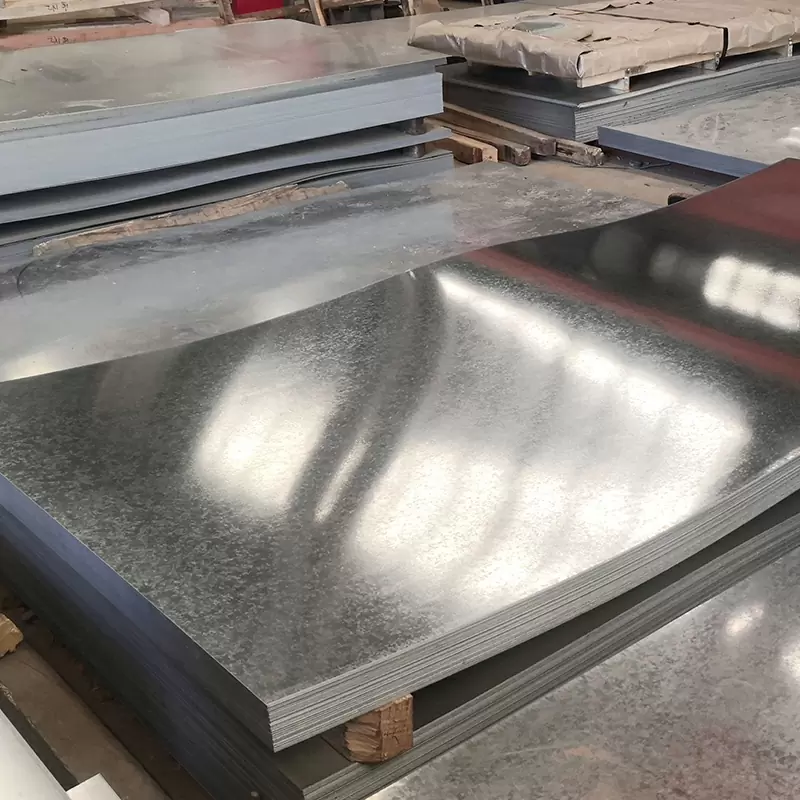

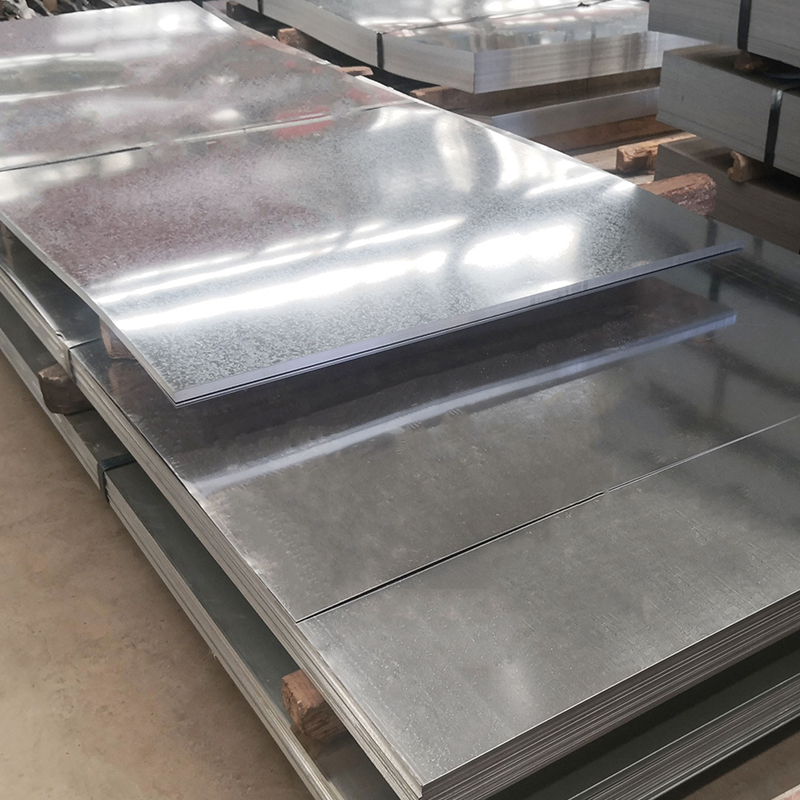

Galvanized Steel Plate

Hot-dip galvanized steel sheet. The thin steel sheet is immersed in a molten zinc tank to make a layer of zinc thin steel sheet adhered to its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel sheet is continuously immersed in a plating tank with molten zinc to make a galvanized steel sheet;
Electro-galvanized steel sheet. This galvanized steel sheet made by electroplating has good processability. But the coating is thin and the corrosion resistance is not as good as hot-dip galvanized sheet;

+86 19953131640

＋86 19953131640

admin@ytsteelgroup.com

PRODUCT PARAMETERS

Electro-galvanized steel sheet. This galvanized steel sheet made by electroplating has good processability. But the coating is thin and the corrosion resistance is not as good as hot-dip galvanized sheet;

Full Cold Galvanizing Process:

Chemical degreasing → hot water washing → water washing → electrolytic degreasing → water washing → acid washing → rust removal → water washing → electrogalvanizing process → water washing → passivation → hot water washing → drying → quality inspection → packaging and sales

Product Parameters

Product Name	Hot Dip Galvanized Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	40-400g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold FormingChinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold FormingJapanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1SGCD2	0.120.10	0.500.50	0.600.45	0.0400.030	0.0300.030	0.0250.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For StructureJapanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400SGC440	0.250.25	0.500.50	1.702.00	0.2000.200	0.0350.035	0.1500.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For StructureAISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Use of The Environment	Recommended Zinc Thickness
Indoor Use	Z40 or Z120 (40g/㎡or 120g/㎡)
Suburbs	Z200 and Painting (200g/㎡)
Urban or Industrial Area	Z275 (275g/㎡) or G90 (US Standard) and painted
Coastal Area	Thicker than Z275 (275g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing Application	Thicker than Z275 (275grams/㎡) or G90 (US Standard) avoid coating peeling after stamping

Surface Treatment Type	Code	Features
Chromic Acid Treatment	C	Good corrosion resistance, suitable for bare state
Chromic Acid Treatment+Oiling	S	Good corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)	P	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling	Q	Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)	T	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling	V	Has a certain corrosion resistance, good paint performance, and prevent rust
Oiling	O	Prevent rust during transportation and storage
No Treatment	M	Suitable for immediate painting

Galvanized Surface Selection

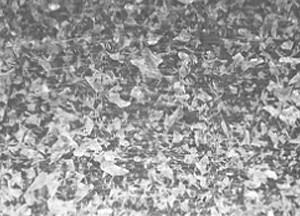

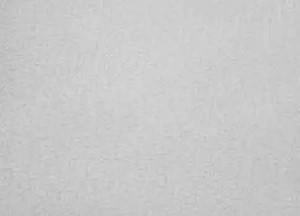

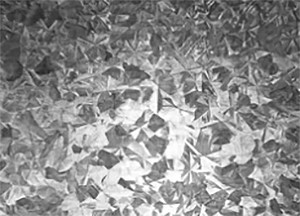

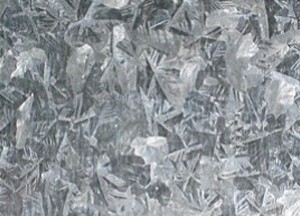

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle

Material Comparison

Chinese Standard	Japan Standard	European Standard
DX51D Z/DC51D Z (CR)	SGCC	DX51D Z
DX52D Z/DC52D Z	SGCD1	DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D Z	SGCD2/SGCD3	DX53D Z/DX54D Z
S220/250/280/320/350/550GD Z	SGC340/400/440/490/570	S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)	SGHC	DX51D Z

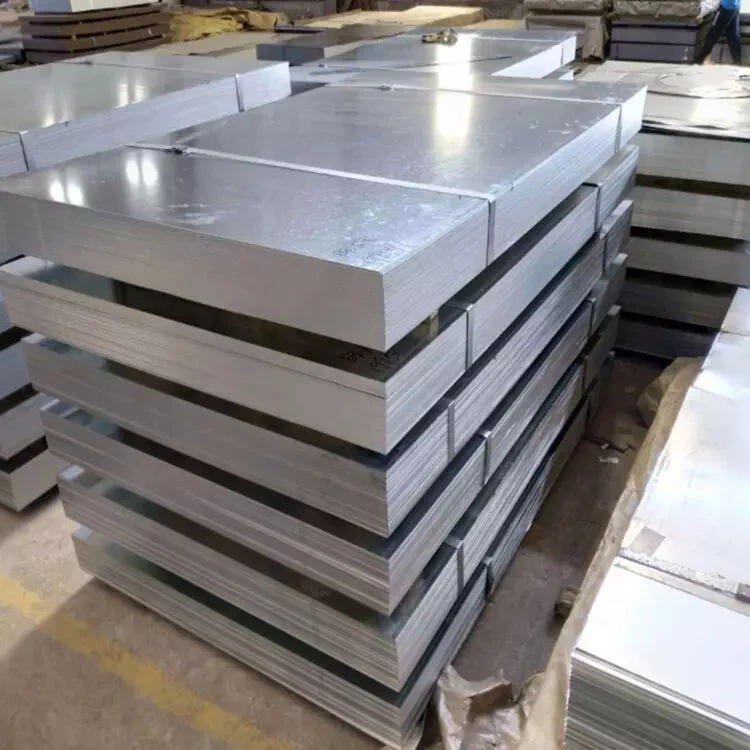

Product Packaging

FAQ



Q1. What is your terms of Packing?

A: Generally we pack your goods with Neutral English bag, PP Woven bag with PE inner bag. If you have your own legally registered sack design, we can pack your goods with your brand and design bags after getting your authorization letter.



Q2. What is your terms of payment?

A: Normally 30% TT as deposit in advance, and 70% TT after email the copy of BL. Or LC at sight. We'll show you the photos pf your goods and package before you arrange the payment.



Q3. What is your terms of delivery?

A: Normally we do FOB, CFR, CIF terms.



Q4. How about your delivery date?

A: Normally it will takes 10~15 days after receive the deposit. The specific delivery time depends on the items and the quantity of the order.



Q5. Can you produce according to the sample?

A: Yes, we can produce by your samples or the specification you provide.
